Polaroid, parametric.

An instant classic, rebuilt one parameter at a time.

ReadySource available · CC BY-NC-SA (source code for Polaroid, parametric., opens in a new tab)OpenSCAD

Print it (MakerWorld) (opens in a new tab)Source for Polaroid, parametric. (opens in a new tab)

Commission

Work order 05 · Polaroid

A static mesh prints at one size and one shape. This rebuilds the Polaroid Land Camera 1000 / OneStep as fully parametric OpenSCAD, so you can resize, customize and print it.

Off the anvil

What it actually looks like today. Captions say exactly what each image is.

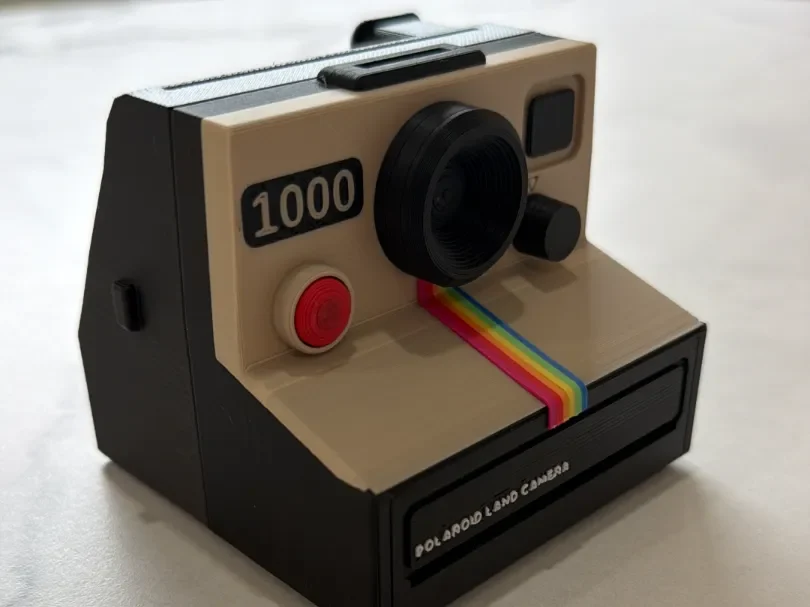

A photo of the actual printed model: cream face, black body, red shutter button, rainbow stripe, '1000' badge.

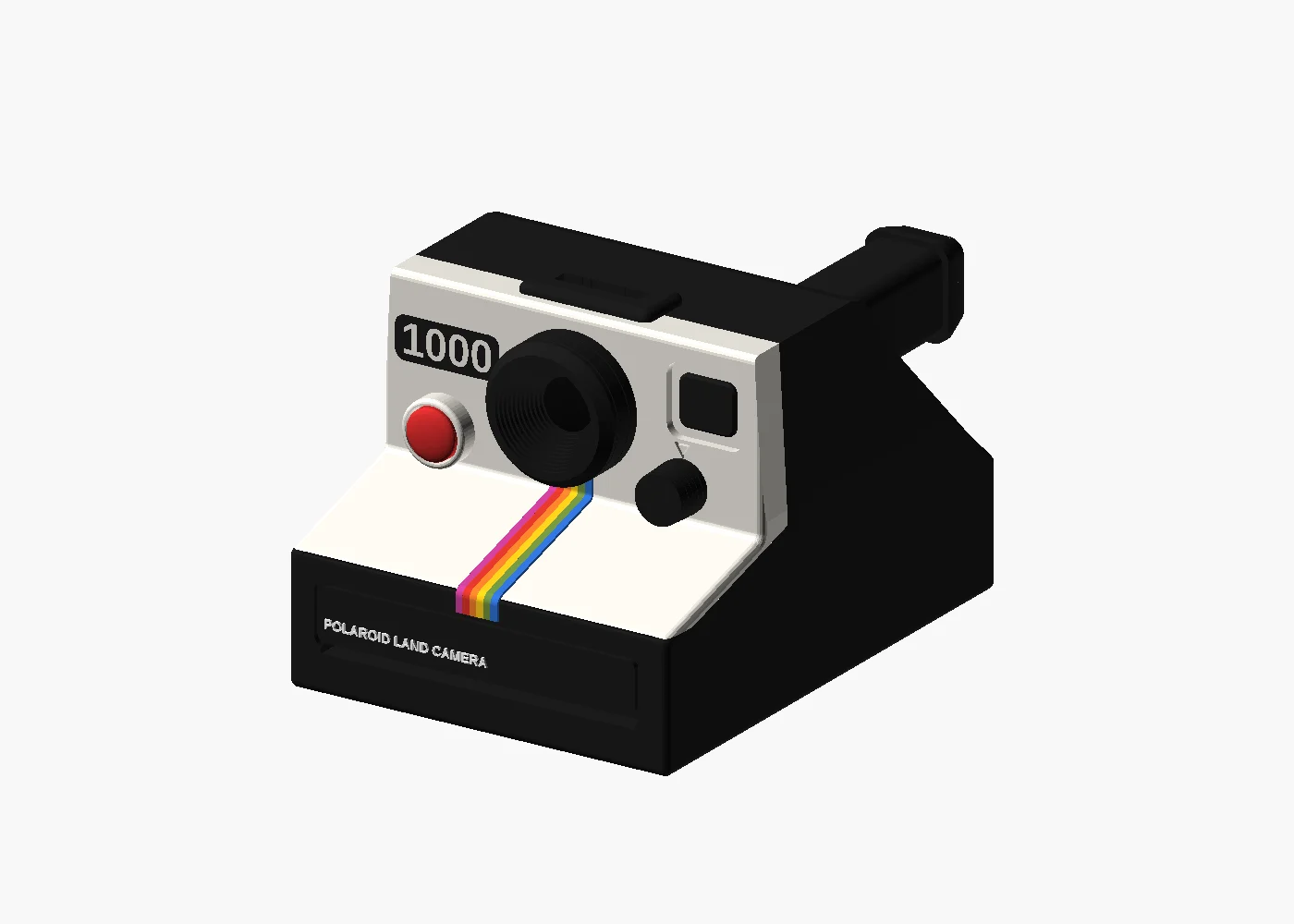

OpenSCAD preview render of camera.scad (camera only, master proportions).

The forging

OpenSCAD

What it does

  • A decorative Land Camera 1000 / OneStep model you can print. It's not a working camera.
  • Scale the whole model, change body width and rear depth, or switch to a 'squish' desk-ornament variant.
  • Export by color (black, cream, red, white, rainbow) or by piece (face, body), or one rainbow band at a time.
  • Optional decorative card and top display-card slot.

How it's made

  • One self-contained camera.scad with no imported meshes. All geometry is defined in source, in millimetres.
  • Reconstructed in OpenSCAD with Claude, using a purchased hand-modeled Blender model only as a dimensional reference. The reference files aren't included.
  • A small Python script renders a preview and exports STL with OpenSCAD's Manifold backend. The MakerWorld profile carries the painted multicolor print.

Tag

Ready

Published 3D model. The source and a combined STL are on GitHub, with a print profile on MakerWorld. Licensed CC BY-NC-SA 4.0 (noncommercial, share-alike).
